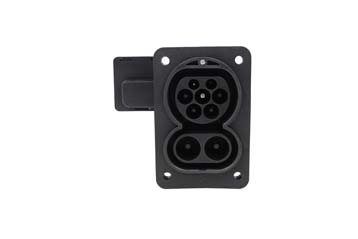

CCS2 charging socket
Standard Compliance: Fully compliant with IEC 62196-3 standards for European EV charging.
High Power Performance: Supports up to 200A DC fast charging and 32A 3-phase AC charging.
Smart Integration: Designed for seamless communication with EVCCs (e.g., ADM-CS-MEVC) via PLC protocols.
Advanced Safety: Features dual PT1000 temperature sensors and an integrated 12V/24V electronic locking actuator.
1. Product Overview
The MAIYUXIN CCS2 Combo Inlet is a heavy-duty charging interface designed for electric trucks, buses, and passenger vehicles. It serves as the primary gateway for both AC (Type 2) and High-Power DC charging. Engineered for durability, this inlet is the industry standard for manufacturers and system integrators performing GB/T to CCS2 conversions or developing new vehicle platforms for the European market.
2. Technical Specifications
| Attribute | Specification |
| Interface Type | CCS2 (Combined Charging System 2) |
| Protocols | ISO 15118-20 / DIN 70121 / IEC 62196-3 |
| Rated Current (DC) | 150A / 200A / 300A/400A/500A (Options Available) |
| Rated Voltage (DC) | Up to 1000V |
| Rated Current (AC) | 32A (Three-Phase) |
| IP Rating | IP55 (Mated) / IP67 (Unmated with cover) |
| Thermal Monitoring | Dual PT1000 or NTC sensors for DC+/DC- |
| Locking Actuator | 12V / 24V Bi-directional DC Motor |
3. Key Features
-
Megawatt Ready Design: Built with silver-plated copper alloy contacts to ensure minimal contact resistance and maximum heat dissipation during high-current sessions.
-
Comprehensive Thermal Safety: Integrated sensors monitor contact temperatures in real-time, allowing the EVCC to de-rate power or stop charging before overheating occurs.
-
Robust Locking Mechanism: The built-in electronic lock ensures the charging connector remains secured throughout the DC charging cycle, preventing accidental disconnection as per ISO 15118.
-
EVCC Compatibility: Dedicated Signal lines (CP, PP) are optimized for Power Line Communication (PLC), ensuring 100% compatibility with the ADM-CS-MEVC and other ISO 15118-20 compliant controllers.
