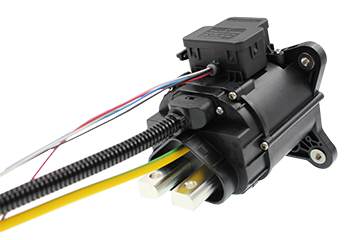

NACS 600A DC Charging inlet socket (BUSBAR)
NACS DC Charging Inlet Socket | 600A Ultra-High Power | Integrated Busbar Interface | SAE J3400 Compliant
The NACS 600A DC Charging Inlet represents the cutting edge of heavy-duty electric vehicle infrastructure. Engineered for the most demanding applications—including electric semi-trucks, high-performance luxury SUVs, and commercial fleet vehicles—this inlet is designed to handle sustained ultra-fast charging currents up to 600A. Featuring a specialized integrated busbar interface, it ensures the lowest possible contact resistance and maximum thermal dissipation for high-voltage battery architectures.
Key Product Highlights
-
Megawatt-Class Performance: Rated for continuous DC charging at 600A, supporting ultra-fast charging speeds for large-capacity battery packs.
-
Integrated Busbar Design: Engineered with solid copper busbars for direct, high-integrity connection to the vehicle’s high-voltage distribution unit (PDU).
-
SAE J3400 & UL Certified: Fully compliant with North American Charging Standards, ensuring safety and global interoperability.
-
1000V DC Ready: Validated for high-voltage platforms, ensuring future-proof compatibility with 800V and 900V vehicle systems.
-
Active Thermal Management: Dual high-precision temperature sensors (NTC/PT1000) integrated directly into the busbar contacts.
Technical Excellence & Engineering Authority
1. Advanced Busbar Interconnect Technology
At 600A, traditional crimped cable connections can become thermal bottlenecks. Our NACS inlet utilizes an integrated busbar architecture. By using solid, silver-plated copper busbars, we significantly increase the surface area for electrical contact and heat dissipation. This results in an ultra-low contact resistance of ≤ 0.2 mΩ, minimizing I²R energy losses and ensuring the inlet remains cool during rapid 400kW+ charging sessions.
2. Mission-Critical Thermal Intelligence
To ensure maximum Trustworthiness, the 600A variant features redundant thermal monitoring. High-sensitivity PT1000 sensors are embedded in the heart of both the DC+ and DC- terminals. This provides the vehicle’s Battery Management System (BMS) with instantaneous data, allowing for precise Active Power Scaling to maximize charging speed while maintaining a safe operating margin below critical temperature thresholds.
3. Automotive-Grade Ruggedization
Designed for the rigors of commercial and industrial use, the housing is manufactured from premium UL94V-0 flame-retardant thermoplastics. The unit is sealed to IP67 standards (unmated), protecting internal busbars from moisture, road salt, and dust. With a validated durability of 10,000+ mating cycles, this inlet is built to outlast the service life of the vehicle.
Technical Specifications
| Category | Parameter | Specification |
| Standard | Executive Standard | SAE J3400 / UL 2251 |
| Electrical | Rated Current (DC) | 600A Continuous |
| Rated Voltage | Up to 1000V DC | |
| Contact Resistance | ≤ 0.2mΩ | |
| Withstand Voltage | 3000V AC | |
| Safety | Temperature Sensors | Integrated NTC / PT1000 |
| Flame Retardancy | UL94V-0 | |
| Mechanical | Terminal Type | Silver-Plated Copper Busbar |
| Mating Cycles | ≥ 10,000 Cycles | |
| Environmental | Operating Temp | -40°C to +50°C |
| Ingress Protection |
IP67 (Unmated) / IP54 (Mated) |
Frequently Asked Questions (FAQ)
Q: Why is a busbar connection preferred over standard cables for 600A?
A: At currents as high as 600A, the mechanical stress and heat generated in standard cables can be extreme. Busbars provide a much more rigid and thermally efficient path for the current, allowing for direct mounting to the vehicle’s power electronics, which reduces both weight and assembly complexity.
Q: Can this inlet handle liquid-cooled charging cables?
A: Absolutely. While the inlet itself is robustly air-cooled via its busbar heat-sinking, it is fully compatible with the liquid-cooled NACS charging guns found at ultra-fast 350kW+ stations.
Q: What is the benefit of silver-plating on the busbars?
A: Silver offers the highest conductivity and best oxidation resistance of any metal. Silver-plating the copper busbars ensures that even after years of exposure to environmental conditions, the contact resistance remains ultra-low, preventing dangerous hotspots during high-current events.
