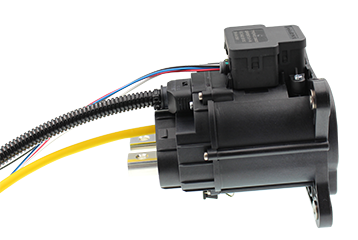

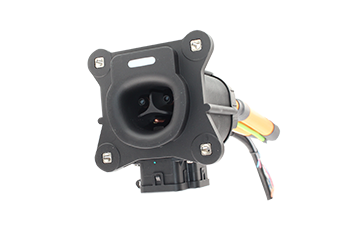

NACS AC / DC Charging inlet socket
-
Standardized Efficiency: Fully compliant with the NACS (SAE J3400) standard for universal North American compatibility.
-
Dual-Purpose Interface: Supports both AC and DC charging through a single, compact set of pins.
-
High Power Delivery: Rated for up to 600A DC continuous and 80A AC single-phase charging.
-
Advanced Thermal Management: Equipped with high-precision temperature sensors for safe high-current operation.
-
Space-Saving Design: Significantly smaller footprint compared to CCS1, ideal for modern vehicle aesthetics.
1. Product Overview
The MAIYUXIN NACS Inlet is a premium charging interface designed for the next generation of North American electric vehicles. Following the transition of major automakers to the SAE J3400 standard, this inlet provides a seamless, “plug-and-play” experience. Unlike the bulky CCS1 Combo, the NACS design utilizes the same pins for both AC and DC charging, resulting in a sleeker vehicle integration and superior user ergonomics.
2. Technical Specifications
| Attribute | Specification |
| Interface Type | NACS (North American Charging Standard) |
| Standard Compliance | SAE J3400 / ISO 15118 / DIN 70121 |
| Rated Current (DC) | Up to 600A (Application dependent) |
| Rated Voltage (DC) | Up to 1000V DC |
| Rated Current (AC) | Up to 80A (Single Phase) |
| Ingress Protection | IP55 (Mated) / IP67 (Unmated with cover) |
| Thermal Protection | Multiple NTC/PT1000 sensors on primary terminals |
| Locking Mechanism | Integrated solenoid/actuator for DC security |
3. Key Features & Benefits
-
Integrated AC/DC Architecture: By using the same contact points for AC and DC power, the NACS inlet eliminates the need for the large “lower ears” found on CCS1 sockets, simplifying vehicle harness design.
-
Verified Communication Compatibility: The Control Pilot (CP) and Proximity Pilot (PP) circuits are fully optimized for Power Line Communication (PLC), ensuring total interoperability with NACS Superchargers and universal ISO 15118-compliant stations.
-
Enhanced Heat Dissipation: Featuring silver-plated solid copper terminals, our inlet is engineered to sustain 400A+ charging curves while maintaining terminal temperatures well within safety limits.
-
Lightweight & Durable: Constructed from high-strength, UV-stabilized polymers, this socket is built to withstand 10,000+ mating cycles in harsh North American climates.
