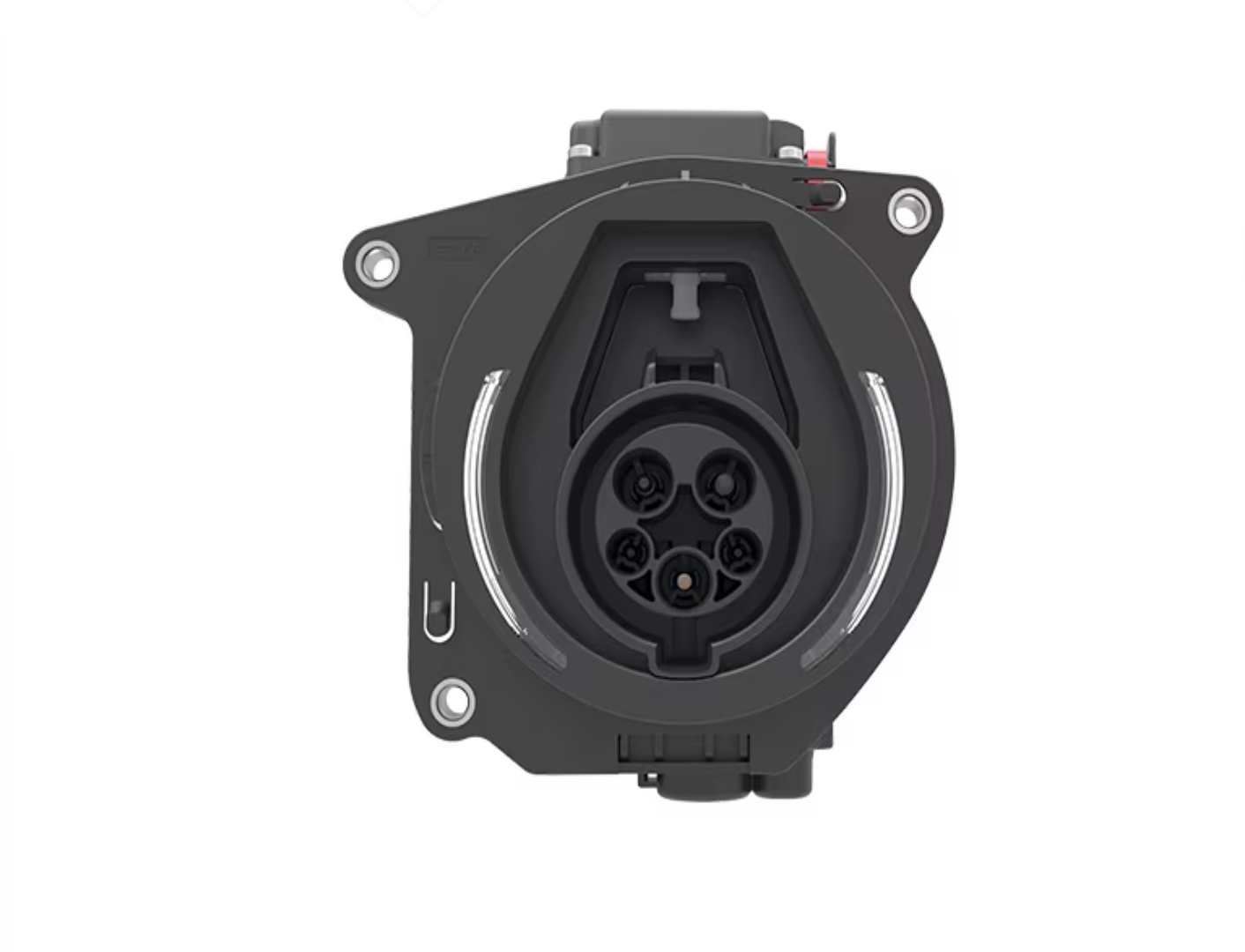

Type 1 EV Charging Socket
-
North American Standard: Fully compliant with SAE J1772 (Type 1) standards for universal AC charging compatibility in North America and Japan.
-
High-Current Support: Available in configurations supporting 32A, 48A, and up to 80A for high-speed Level 2 charging.
-
Exceptional Durability: Engineered for over 10,000 mating cycles with silver-plated copper alloy contacts for superior conductivity.
-
Weather-Resistant: Rated IP55 (when mated) for reliable operation in rain, snow, and dusty environments.
-
Safety Integrated: Features a robust locking mechanism and signal pins (CP/PP) for secure vehicle-to-charger handshaking.
1. Product Overview

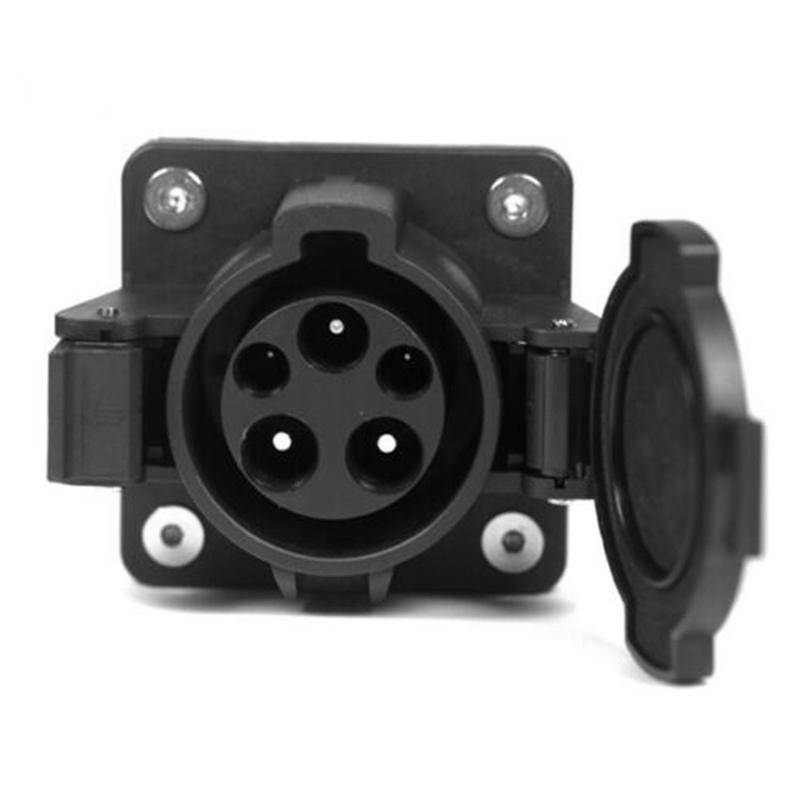

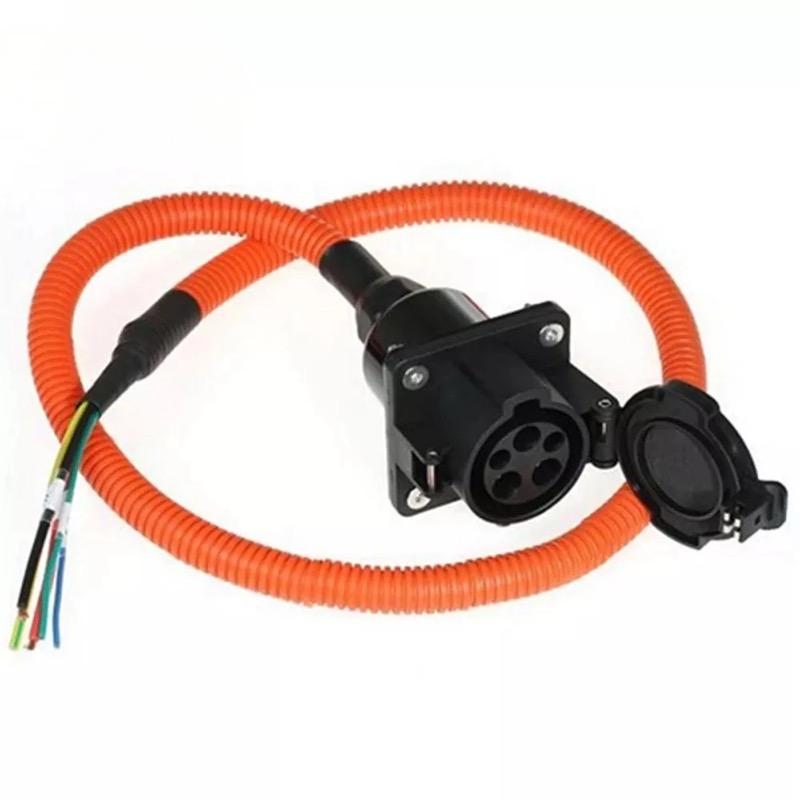

The MAIYUXIN Type 1 Inlet is a high-quality, vehicle-side charging interface designed for EVs and PHEVs utilizing the SAE J1772 standard. This 5-pin socket is the standard for North American AC Level 1 and Level 2 charging. Whether you are a manufacturer (OEM) or performing a custom vehicle electrification project, this inlet provides a safe, reliable, and standardized connection to thousands of public and residential charging stations.
2. Technical Specifications
| Attribute | Specification |
| Interface Type | Type 1 (SAE J1772) |
| Relevant Standards | SAE J1772 / IEC 62196-2 |
| Rated Voltage | 120V / 240V AC |
| Rated Current | 32A / 48A / 80A (Single Phase) |
| Contact Resistance | ≤ 0.5mΩ |
| Insulation Resistance | > 1000MΩ (DC 500V) |
| Ingress Protection | IP55 (Mated) / IP67 (Internal components) |
| Operating Temperature | -30°C to +50°C |
| Flame Retardant Rating | UL94 V-0 |
3. Key Features & Benefits
-
Silver-Plated Contacts: We use premium silver plating on all power terminals to prevent oxidation and ensure minimal heat buildup during prolonged 80A charging sessions.
-
Ergonomic Integration: The compact housing allows for easy installation behind standard vehicle fuel doors, minimizing the structural modifications required for EV conversions.
-
Reliable Communication: Includes dedicated Control Pilot (CP) and Proximity Pilot (PP) pins to ensure the vehicle only draws power when the plug is fully inserted and the charger is ready.
-
Safety Latch Interface: Designed with a precise mechanical latching interface that prevents the charging gun from being removed while current is flowing, protecting both the user and the vehicle.
