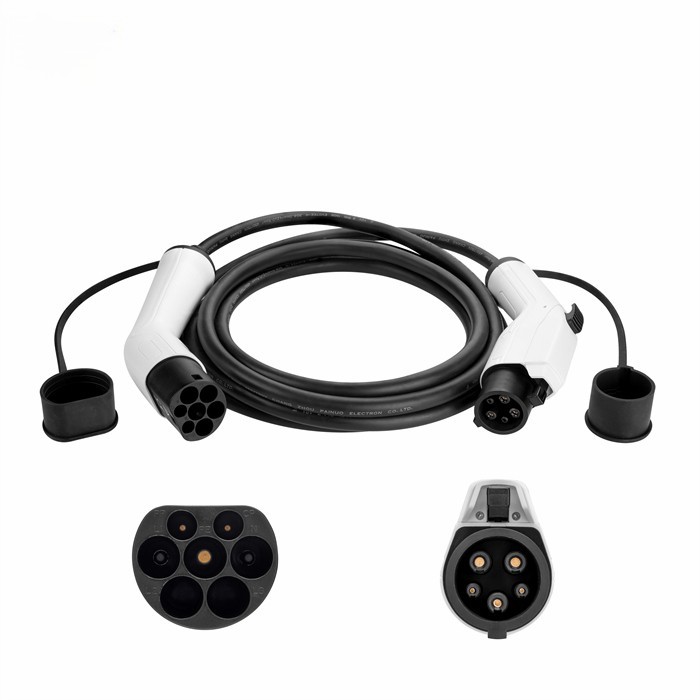

Type 1 to Type 2 ev charging cable
The essential adapter for international EV mobility. Our Type 1 to Type 2 EV charging cable allows vehicles with a Type 1 (SAE J1772) inlet to charge at universal Type 2 (Mennekes) charging stations. Whether you are using a public station in Europe or an untethered home wallbox, this cable provides a secure, high-conductivity connection. Engineered with silver-plated terminals and a rugged TPU jacket for all-weather durability.
-
Connector Standard: Type 2 (Station Side) to Type 1 (Vehicle Side)
-
Current Ratings: 16A / 32A (Single-Phase)
-
Power Capacity: Up to 7.4kW
-
Material: High-Flex TPU (EN 50620 Standard)
-
Certifications: CE, TUV, and RoHS Certified
Technical Excellence for Global Charging
Bridging the Standard Gap
Modern EV infrastructure often utilizes the universal Type 2 socket for destination charging. For owners of vehicles utilizing the Type 1 standard (common in older Nissan Leaf, Mitsubishi Outlander PHEV, and North American imports), our Type 1 to Type 2 cable is the definitive hardware solution. It translates the European Mennekes outlet into a J1772-compatible interface without compromising signal integrity or charging speed.
Engineering Authority & Safety
In standard conversion, precision is non-negotiable. Our cables are manufactured with premium components to ensure site reliability and user safety:
-
5μ Silver-Plated Terminals: Both ends of the cable feature silver-plated copper alloy contacts. Silver provides the lowest contact resistance ($\leq 0.5m\Omega$), significantly reducing the thermal rise that occurs at high 32A loads compared to standard nickel-plated connectors.
-
Industrial-Grade TPU Jacket: We utilize high-spec Thermoplastic Polyurethane (TPU) insulation. This material maintains its flexibility at -30°C, resists UV degradation in outdoor driveways, and is highly resistant to abrasion and automotive chemicals.
-
Integrated Safety Communication: The cable features fully functional Proximity Pilot (PP) and Control Pilot (CP) pins. These signal wires ensure the vehicle communicates correctly with the station, locking the cable in place and verifying grounding before current flows.
-
Mechanical Resilience: The unibody connector head is designed to withstand a 2-ton vehicle drive-over test, protecting the internal wiring from accidental damage in busy public environments.
Technical Specifications
| Feature | 16A Specification | 32A Specification |
| Max Power Output | 3.7kW (Single-Phase) | 7.4kW (Single-Phase) |
| Connector A | IEC 62196-2 (Type 2 Female) | IEC 62196-2 (Type 2 Female) |
| Connector B | SAE J1772 (Type 1 Male) | SAE J1772 (Type 1 Male) |
| Cable Structure | 3 x 2.5mm² + 2 x0.5mm² | 3 x 6.0mm² + 2 x 0.5mm² |
| Ingress Protection | IP55 (Mated) / IP67 (Body) | IP55 (Mated) / IP67 (Body) |
| Flammability | UL94 V-0 | UL94 V-0 |
| Operating Temp | -30°C to +50°C | -30°C to +50°C |
🛠️ Selection Guide: 16A vs. 32A
To provide the most Trustworthy solution for your vehicle, consider your onboard charger:
-
16A (3.7kW): Ideal for many Plug-in Hybrid (PHEV) models that have a limited charging speed. The cable is thinner, lighter, and easier to store.
-
32A (7.4kW): Recommended for full battery-electric vehicles (BEV) and modern PHEVs. This cable is “future-proof,” as it will work with 16A chargers but can provide the full speed required by modern high-capacity batteries.
Frequently Asked Questions (FAQ)
Q: Can I use this cable on any public Type 2 station?
A: Yes, provided the station is “untethered” (has a socket). This is the standard cable used by Type 1 vehicle owners across Europe to access public charging infrastructure.
Q: Does this cable work with my Tesla?
A: This specific cable is for Type 1 vehicles. Tesla vehicles in Europe use a Type 2 inlet. If you have a North American Tesla, you would typically use a CCS1-to-NACS or Type 2-to-NACS adapter rather than this specific conversion cable.
Q: Is it safe to leave this cable outside in the rain?
A: Yes. The connector bodies are IP67 rated, and the connection is IP55 rated when mated to the vehicle, ensuring full protection against rain and dust.
