Product Title
Premium Type 2 EV Charging Cable | 13A–70A Options | Single & Three Phase | IEC 62196-2 Compliant for Europe, India, & Thailand
Product Short Description

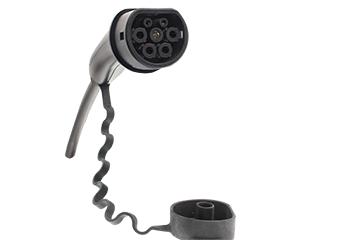

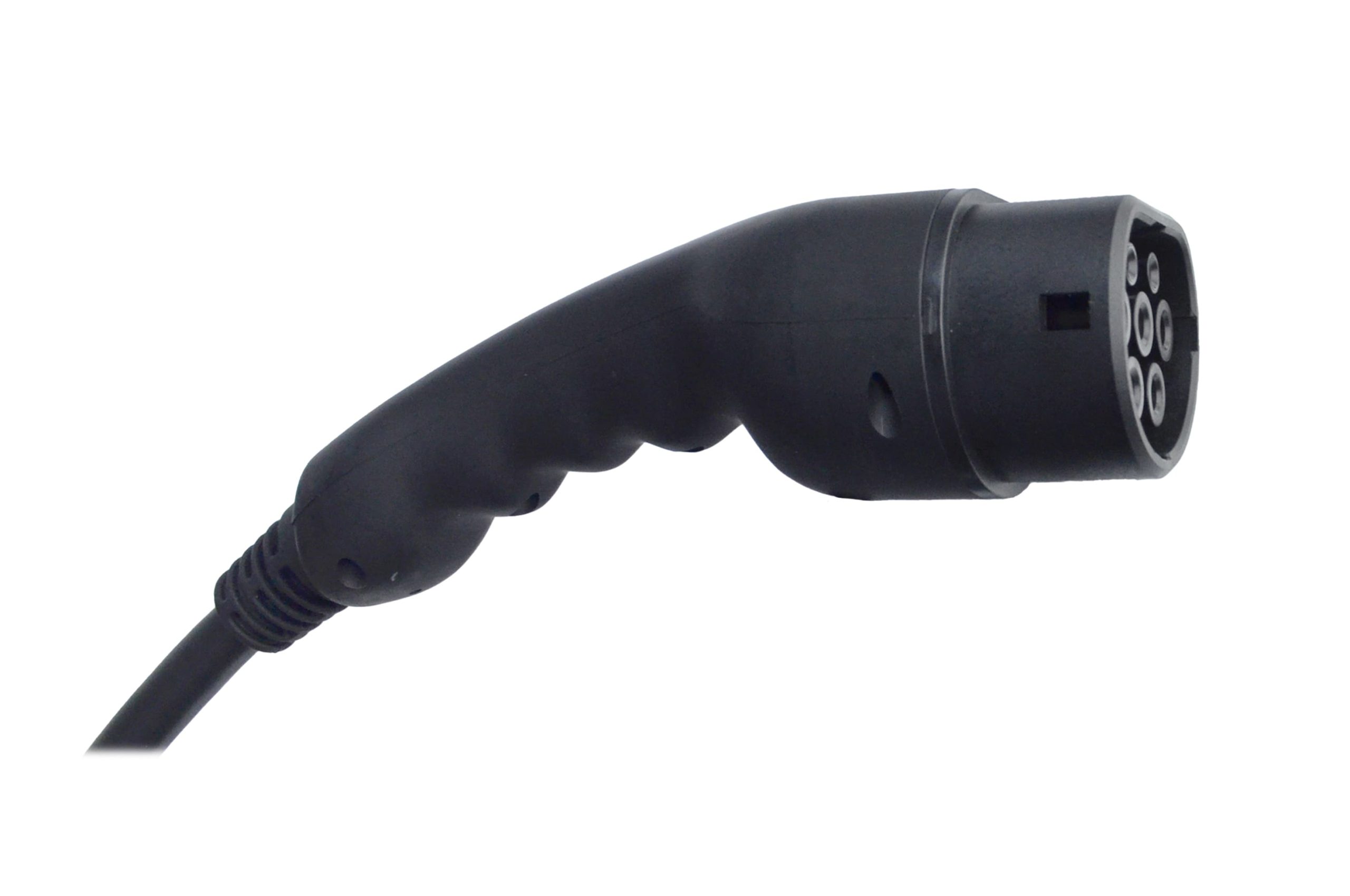

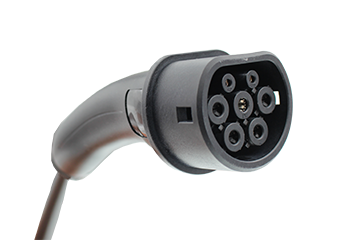

Empower your EV infrastructure with the high-reliability VCCI series Type 2 (Mennekes) charging cables. Supporting a versatile range of power requirements from 13A to 70A, these Mode 3, Case C cables are engineered for residential wallboxes and public charging stations. Featuring a rugged, unibody design and silver-plated copper alloy contacts, they ensure a low-resistance connection across 10,000+ mating cycles.
-
Standards: IEC 62196-2, EN50620, IEC 61851 Mode 3
-
Amperage Range: 13A, 20A, 32A, 63A, 70A
-
Durability: 5000N Drive-over test passed
-
Protection: IP67 (Body) / IP44 (Mated)
-
Safety: TUV certified & UL 94V-0 Flammability rating
Professional-Grade Engineering for Global Markets
Versatile Power Solutions for Every Application
Our Type 2 EV charging cable series provides the scalability required for modern electric mobility. Whether you are deploying a 13A solution for residential use or an industrial-grade 70A single-phase cable for rapid destination charging, the VCCI series delivers consistent performance. Designed for compatibility across Europe, India, and Thailand, these cables support both single-phase (250V) and three-phase (480V) configurations.
Technical Expertise & Structural Integrity
In the competitive EVSE market, technical transparency is the foundation of trust. Our cables are built to exceed standard mechanical and electrical thresholds:
-
Extreme Mechanical Resilience: The unibody connector head has successfully passed a 5000N drive-over test, ensuring it remains functional even if accidentally run over by a heavy vehicle.
-
Superior Contact Technology: We utilize silver-plated copper alloy terminals to achieve minimal contact resistance. This prevents heat buildup during high-current sessions (up to 70A), extending the lifespan of both the cable and the vehicle’s inlet.
-
All-Weather Reliability: With an IP67-rated body, the internal components are sealed against dust and moisture. The system maintains an IP44 rating when mated, providing safe operation in rain or snow.
-
Advanced Material Science: The shell is constructed from a high-performance blend of PBT, PC, and PA66, while all insulators meet the UL 94V-0 flammability standard, the highest rating for self-extinguishing safety.
Technical Specifications
| Feature | Single-Phase | Three-Phase |
| Rated Current | 13A / 20A / 32A / 70A | 20A / 32A / 63A |
| Rated Voltage | 250V AC | 480V AC |
| Cable Standard | EN50620 | EN50620 |
| Mating Cycles | ≥ 10,000 | ≥10,000 |
| Insertion Force | ≤ 100N | ≤ 100 N |
| Operating Temp | -30°C to +50°C | -30°C to +50°C |
| Cable Length | 5M (Customizable) | 5M (Customizable) |
🛠️ Expert Amperage & Cable Structure Guide
Correct cable sizing is critical for thermal safety. Our VCCI series follows strict EN50620 specifications:
-
13A Single-Phase: 3 x 1.5mm² + 1 x 0.75mm²
-
32A Single-Phase: 3 x 6.0mm² + 1 x 0.75mm²
-
70A Single-Phase: 3 x 16mm² + 1 x0.75mm² (High-Power Destination Charging)
-
63A Three-Phase: 5 x 16mm² + 1 x 0.75mm² (Industrial/Commercial Grade)
Frequently Asked Questions (FAQ)
Q: Can a 70A Type 2 cable be used on a standard 32A car?
A: Yes. The cable is rated for up to 70A. Using a higher-rated cable is a professional safety choice as the thicker copper conductors run significantly cooler, reducing energy loss.
Q: Is this cable suitable for commercial charging stations?
A: Absolutely. With TUV safety certification and IEC 61851 Mode 3 compliance, these cables are designed for the high-frequency use found in workplace and public charging hubs.
Q: What is the benefit of the unibody design?
A: The unibody construction eliminates seams where water or dust could ingress, providing a much higher level of durability and ergonomic comfort than traditional screw-assembled handles.
